Multi-Layer Extrusion Crossheads

The multi-layer crossheads are designed for insulating using multiple layers and compounds. Multiple main extruders feeding the crosshead are used to achieve the desired layers for insulating the wire. Additional striping or skin layers may also be applied using the final exit program insert.

SC2/3-V: Multi Layer Crossheads

  • Highly durable and abrasion resistant steel alloy
  • Torpedo style distribution cartridge
  • Quick 3 step tool changes
  • Even temperature control
  • Units for insulation OD up to 120 mm (4.75")
  • Fixed (S) & manual (MC) centering models

Models Layer configurations

  • DL Dual layer extrusion
  • DLV Dual layer + stripe/skin
  • TLV Triple Layer + stripe/skin

Fixed Center Crossheads

  • Immediate precise start-up
  • No set-up required
  • Immediate concentric insulation
  • No operator set-up required
  • Reduced scrap

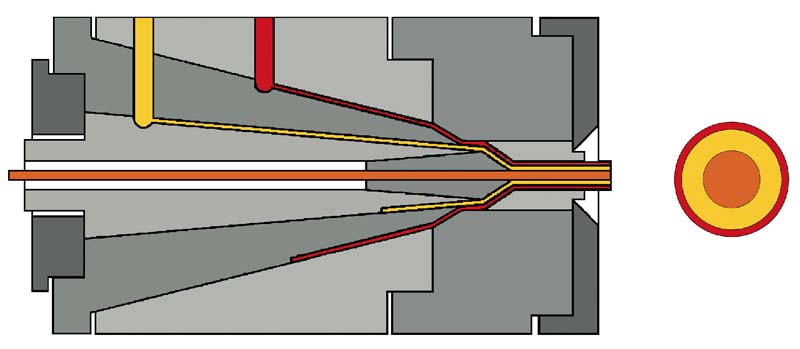

Multi-Layer Extrusion Crossheads
Multi-Layer Extrusion Crossheads
Multi-Layer Extrusion Crossheads

Chart - Multi-Layer Extrusion Crossheads
